Docs

HB Matrices

The Dashboard Deelmobiliteit aggregates rental data to a HB matrix grid. The frontend UI for this can be seen at /map/rentals (select the HB data layer).

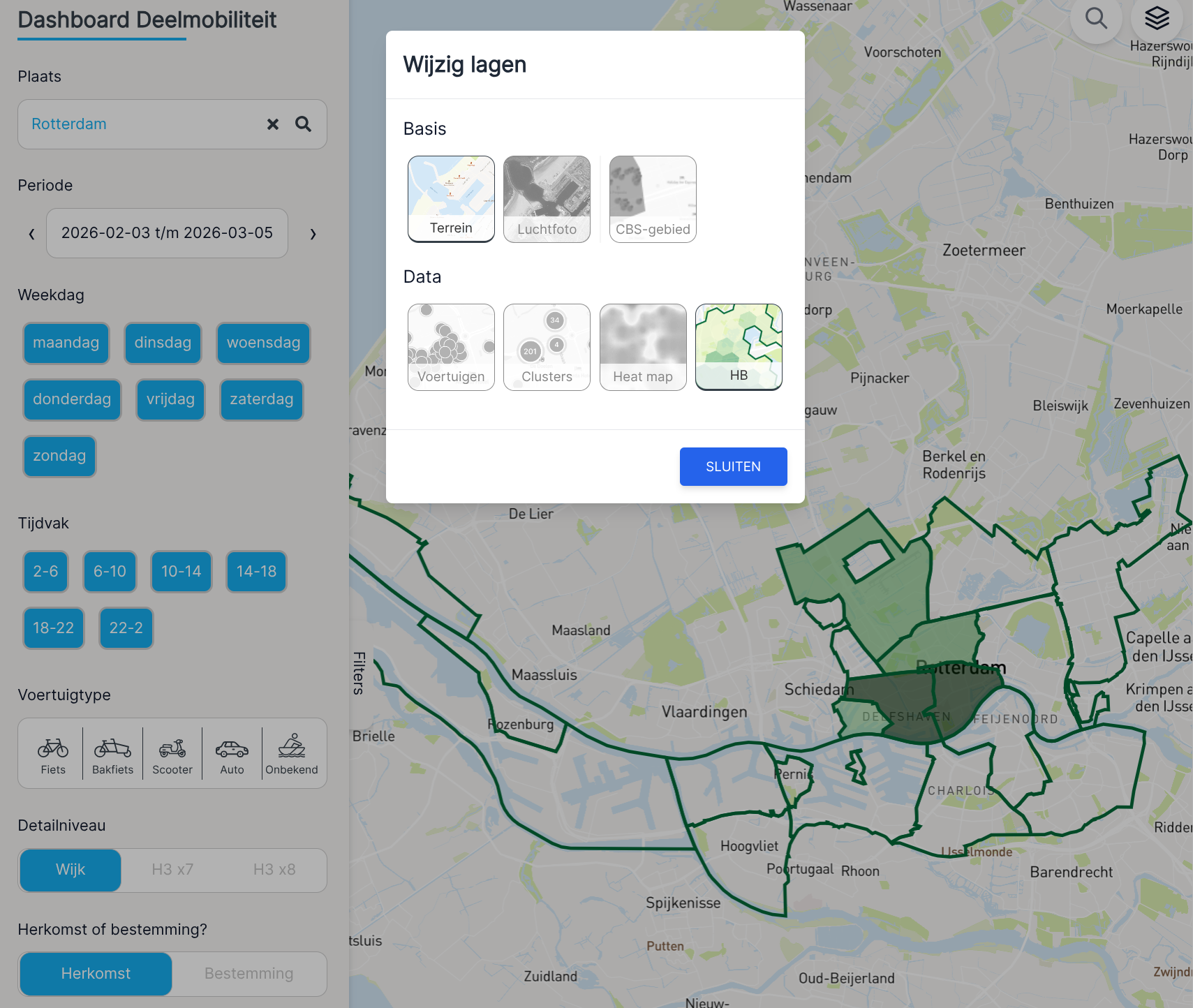

Screenshot of "Select layer" modal

Types of aggregations

You can see a HB matrix in two different ways:

  1. Using the municipality zones (stadsdelen)
  2. Using a H3 grid (level 7 or 8)

Settings

You can set:

  • Period (from and to date)
  • Weekday (1 or multiple options)
  • Time windows (6 predefined time windows)
  • Vehicle type
  • Want to see the origins or destinations?

Based on these settings the HB grid appears on your map. Values are only shown if there’re at least 4(?) rentals in that area.

API end points

/od-api/[origins|destinations]/[h3|geometry]

Use one of the following API end points:

together with query params:

  • h3_resolution=7 or h3_resolution=8
  • start_date=yyyy-mm-dd
  • end_date=yyyy-mm-dd
  • time_periods=2-6
  • days_of_week=fr%2Csa%2Csu
  • origin_cells or destination_cells=87196bb51ffffff
  • origin_stat_refs or destination_stat_refs=cbs%3AWK059901

cURL examples

HB matrices for H3 grid areas
curl --location 'https://api.deelfietsdashboard.nl/od-api/destinations/h3?h3_resolution=7&end_date=2023-02-06&start_date=2023-01-05&time_periods=2-6&days_of_week=fr%2Csa%2Csu&origin_cells=87196bb51ffffff' \
--header 'authorization: Bearer TOKEN'
HB matrices for municipality zones
curl --location 'https://api.deelfietsdashboard.nl/od-api/origins/geometry?end_date=2022-02-06&start_date=2022-01-05&destination_stat_refs=cbs%3AWK059901' \
--header 'authorization: Bearer TOKEN'

Everything’s the same as for H3 grid HB matrices, apart from:

  • We use the endpoint /origins/geometry instead of /origins/h3
  • Key destination_stat_refs is used instead of destination_cells

Source code

The OD matrix aggregator code can be found at github.com/Stichting-CROW/dashboarddeelmobiliteit-od-matrix-aggregator

The OD API can be found at github.com/Stichting-CROW/dashboarddeelmobiliteit-od-api

Both software packages are licensed under the open source license: Mozilla Public License 2.0
